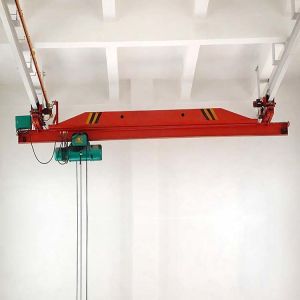

5T Span 8m Suspended Single Girder Bridge Crane Increase Lifting Height
product description of 5T Span 8m Suspended Single Girder Bridge Crane Increase Lifting Height:
The LX electric single-beam suspension crane is designed and manufactured in strict accordance with national standards and used in conjunction with CDI and MDI electric hoists to become a light and small crane that runs on rails.
This crane is applicable in factories and warehouses where the height from the rail surface to the lower edge of the truss is equal to or shorter than 500mm. The trolley is equipped with a specific electric hoist that flexible structure and safe and reliable operation.
The lifting weight is 0.5t-10, the span is 3-16m, the working level is A3-A4, and the working environment temperature is -20—+40℃. It is forbidden to work in the environment of flammable, explosive and corrosive media.
Used in general workshops and warehouses for loading, unloading and handling goods. There are three modes of operation: ground operation, remote control, ground operation plus remote control.
Technical Parameter(customizable) of 5T Span 8m Suspended Single Girder Bridge Crane Increase Lifting Height:
| LX single beam suspension crane |
| Lifting Capacity T | 3 | 5 | 10 |
| Span M | 3-16 |
| Lifting height M | 6,9,12,18 |
| Trolley travelling Speed M/min | 20,30 |
| Lifting Speed M/min | 8,8/0.8 |
| Work level | A3-A5 |
| Wheel diameter mm | 130 | 150 |
| I-beam track | ꞁ 32a- ꞁ45c | ꞁ 40b- ꞁ 63c |
| Power Source | According to your demand
|
Main Features of 5T Span 8m Suspended Single Girder Bridge Crane Increase Lifting Height:
1.Light working duty. Light dead weight, light wheel-pressure
2.Competitive price
3.Tight dimensions, low building headroom, light dead weight and light wheel load
4. Overload protection: If the material is over the capacity, it will give a sharp warning for protection itself.
5. Emergency brake: If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure.
6. Control Method: Room control or remote control to avoid any injure to the operation staff
7. Main lifting motor: with thermal protection and currency protection.
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a cable trolley crane manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
