10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet

  • 1
  • 2
  • 3

Brand Name : KUANGYUAN

Model Number : QP

Certification : ISO CE GOST GB/T

Place of Origin : Henan,China

MOQ : 1Set

Price : USD 9000-45000

Payment Terms : L/C, T/T

Supply Ability : 25000 sets per year

Delivery Time : 45~65 work days

Packaging Details : 1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying. 2. Main beams, end beams and trolly/winch are packed by plastic woven cloth. It can reduce abrasion during the transportation. 3. If the size are suitable for co

product name : Two purpose overhead bridge crane with grab and magnet

girder type : double type

working class : A6

lifting weight : 5/5T, 10/10T, 16/16T

lifting height : 16~22m

lifting speed : 40.14/15.6m/min; 40/10.4m/min; 41.8/13m/min

trolley travelling speed : 43.2~45.6m/min

main electrical parts : Schneider Brand

control method : Cabin Control

power source : 3 Phase 380V 50hz/Custmized

Contact Now

PRODUCT DESCRIPTIONS

10T A6 Two purpose overhead bridge crane with grab and magnet for customeized

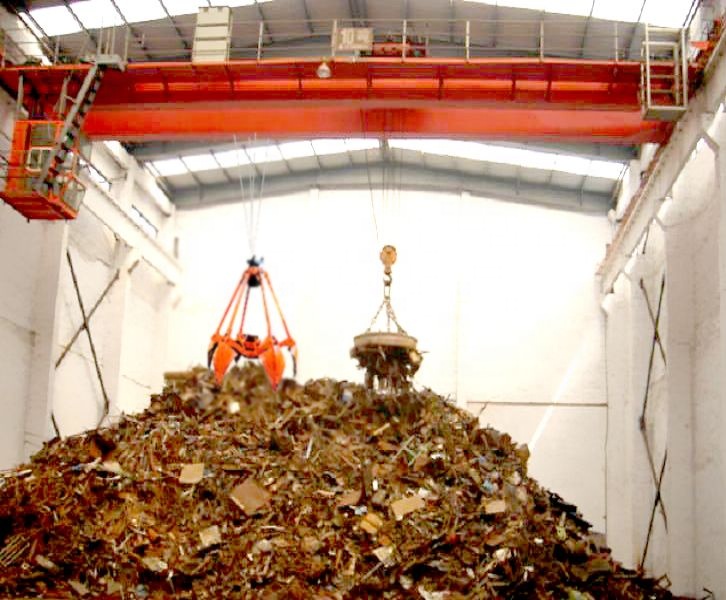

QP type grab electromagnetic double-girder bridge crane has both a grab and an electromagnetic sucker. The electromagnetic sucker mainly uses the electromagnetic principle to transport steel objects, and the main part is a magnet. When the current is turned on, the electromagnet will firmly attract the steel object and lift it to the designated place. Cut off the current, the magnetism disappears, and the steel item is put down. Electromagnetic cranes are very convenient to use, but they can only be used when there is current. They can be used in scrap steel recycling departments and steel making workshops.
The electromagnetic crane can generate a strong magnetic force, and dozens of tons of iron sheets, iron wires, iron nails, scrap iron and other iron materials can be easily collected and transported without packing, packing or bundling. The operation is labor-saving and the work is simplified. Steel materials and machines in wooden crates can be handled similarly. When the crane is working, as long as the current in the electromagnet coil does not stop, the heavy objects that are sucked up will not fall, and the invisible magnetic force is more reliable than a solid chain. If the power is cut off for some reason, the crane generally has a safety protection device and a battery, which can generally be maintained for about half an hour after the power failure, so as to avoid accidents such as power failures that cause the objects attached to the disk to fall and cause accidents. Cranes cannot handle hot iron, because hot steel cannot be magnetized.

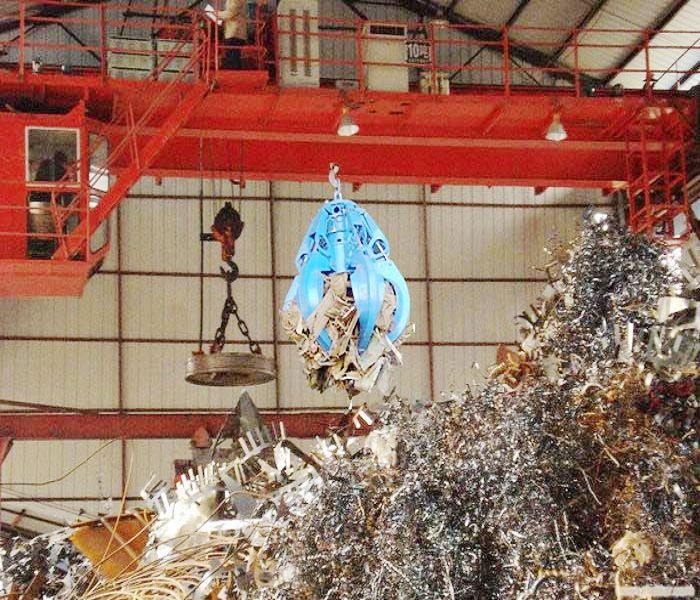

The grab electromagnetic bridge crane is also equipped with a grab, which can be used to grab scraps and other objects. Therefore, this type of crane can meet the two work occasions of grabbing and adsorbing steel waste, and has a wide range of applications.
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet
PRODUCT CONFIGURATION
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet

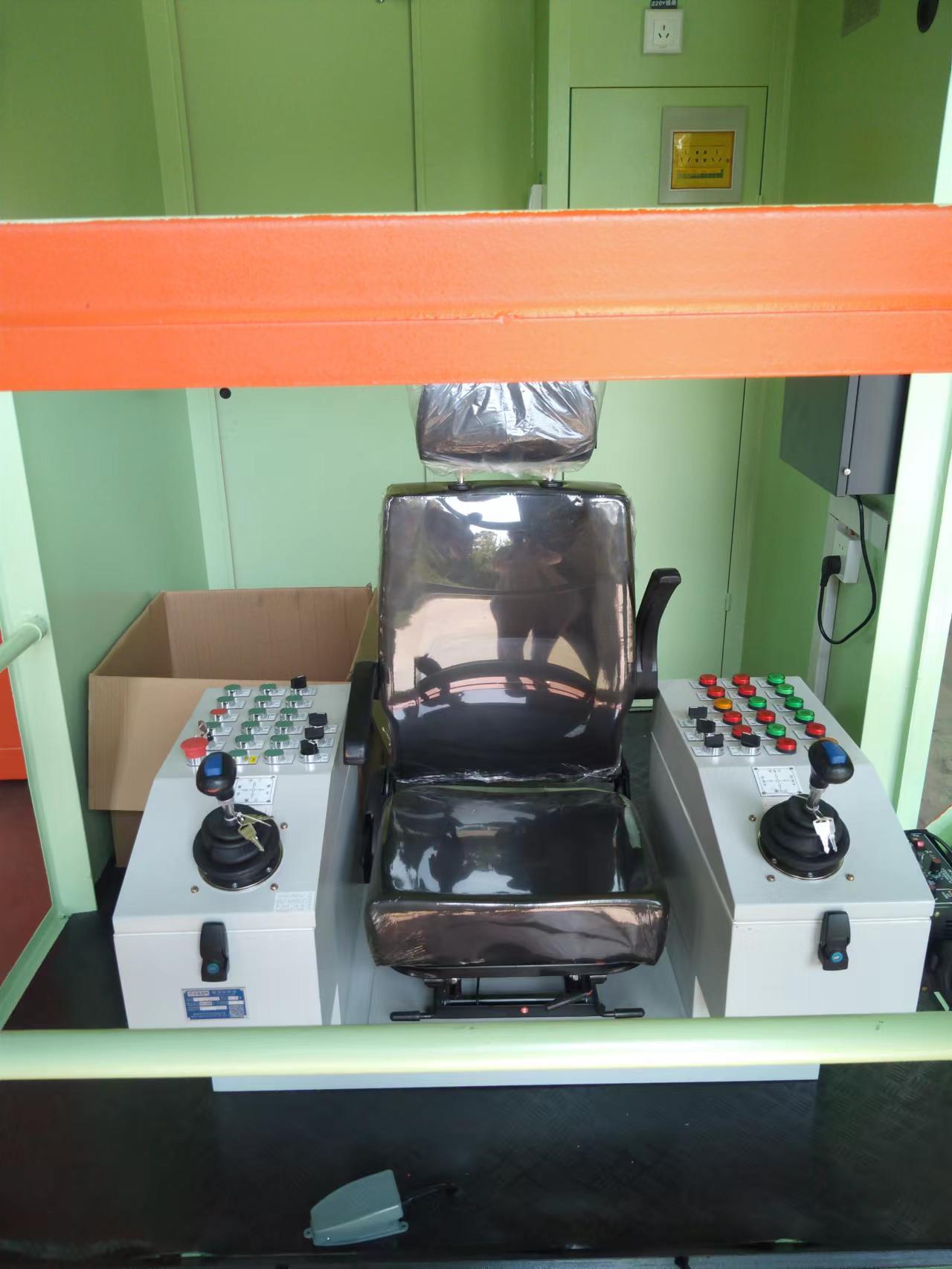

1. Grab electromagnetic dual-purpose bridge crane operating room is separated and closed.
2. The entrance of the control room
platform of the grab electromagnetic dual-purpose bridge crane is divided into three types: side surface, end surface and top
surface.
3.Added height for cart bumpers.
4. Grab electromagnetic dual-purpose bridge cranes are divided into indoor and indoor types. When ordering, the technical
requirements such as the maximum and minimum temperature of the working environment and the type of power supply should be indicated.

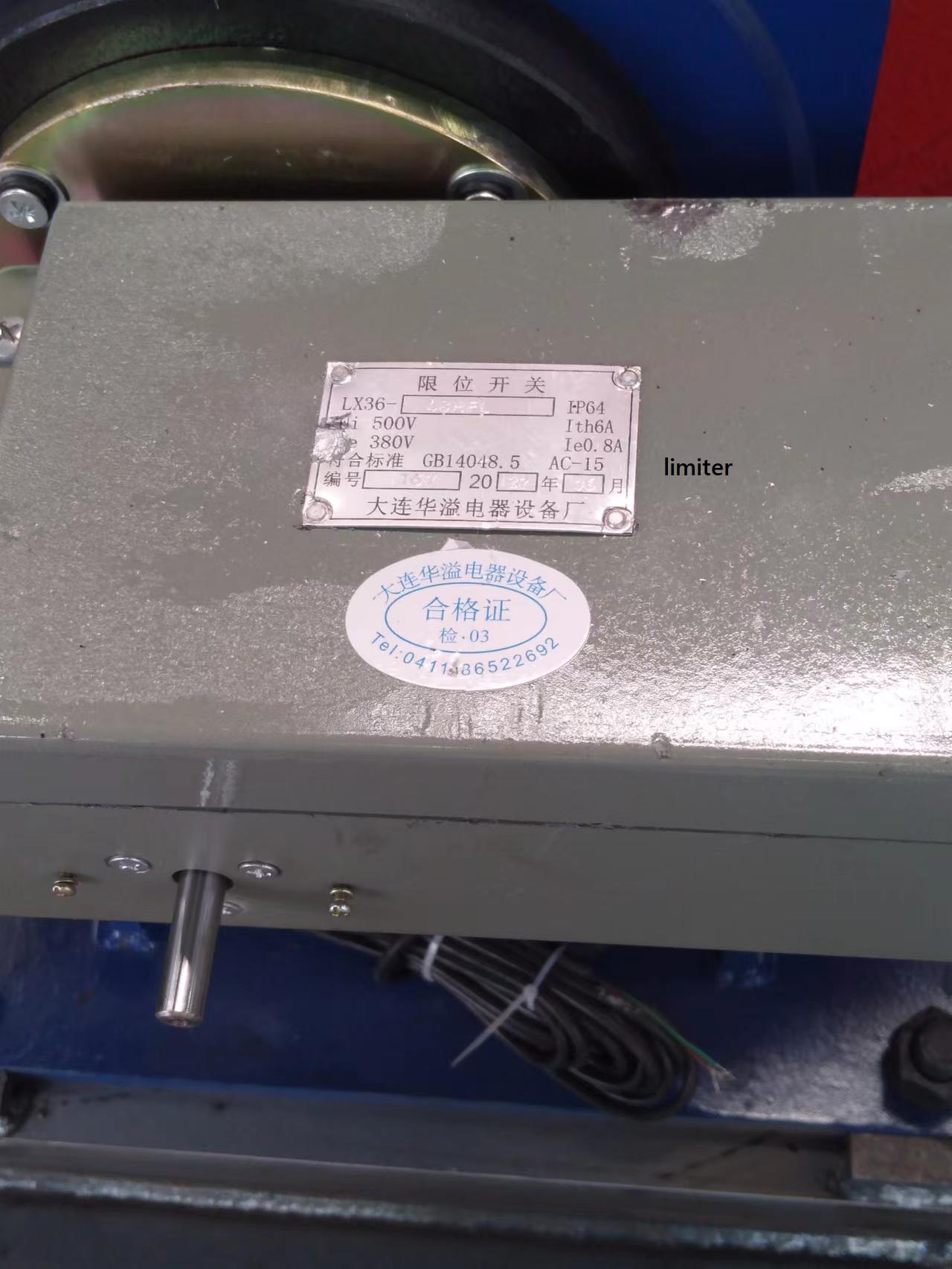

5. An overload limiter, a large-screen display and various protection devices are added, which further increases the safety during
use.
6. The aerial operation method generally adopted by the grab electromagnetic dual-purpose bridge crane.
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet
PRODUCT PARAMENTERS
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet
起重量Lifting Weight t 55 1010 16/16
跨度Span m 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5 19.5 22.5 25.5 28.5 31.5
最大起升高度Max Lifting Height 抓斗Grab m 20 18 22
电磁Magnet 16 22 22
工作级别Working class A6
速度Speed 起升hoisting 抓斗Grab m/min 40.1 10.26 41.8
电磁magnet 20 19.4 16.4
小车运行 handcar travel 44.6 45.6 43.2
大车运行Trolley travel 93.7 113 112.5 101 87.3
电机Motor 起升Hoisting 抓斗Grab Type/kw YZR225M-8/22 YZR208S-10/37 YZR315M-10/75
电磁Magnet YZR200L-6/22 YZR280S-10/37 YZR250M2-6/45
小车运行 handcar travel YZR132M2-6/3.7 YZR160M1-6/5.5 YZR160M2-6/7.5
大车运行Trolley travel YZR160M2-6/7.5×2 YZR160L-6/11×2 YZR160M2-6/7.5×2 YZR160L-6/11×2 YZR200L-8/1.5×2
最大轮压Max.wheel pressure 室内Indoor KN 106 113 120 131 134 151 161 171 159 173 186 196 209 219 229 241 253 264 275 283
室外Outdoor 111 118 125 136 140 156 166 177 163 177 190 199 213 223 233 245 258 271 281 289
抓斗Grab 型号Model u 113 109 110 105 106 101 102 127 123 124 119 120 115 116 141 137 138 133 134 129 130
类型Type 轻型 中型 重型 超重型 轻型 中型 重型 超重型 轻型 中型 重型 超重型
容积volume m3 2.5 1.5 1 0.75 5 3 2 1.5 8 4.8 3.2 2.5
容重Density t/m3 ≤1 >1-1.7 >1.7-2.5 >2.5-3.3 ≤1 >1-1.7 >1.7-2.5 >2.5-3.3 ≤1 >1-1.7 >1.7-2.5 >2.5-3.3
自重Dead weight kg 2633 2549 2615 2506 2568 2479 2546 4800 4803 4866 4850 4913 4730 4793 7841 7993 8143 8008 8159 8155 8305
电磁盘Magnet 型号Model MW1-6 MW1-6 MW1-6 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-16 MW1-45 MW1-45 MW1-45
吸重Pull weight kg 4540 4540 4540 3330 3330 3330 3330 8330 8330 8330 8330 8330 8330 8330 14330 14330 14330 14330 10450 10450 10450
自重Dead weight 460 460 460 1670 1670 1670 1670 1670 1670 1670 1670 1670 1670 1670 1670 1670 1670 1670 5550 5550 5550
直径Diameter mm 776 776 776 1180 1180 1180 1180 1180 1180 1180 1180 1180 1180 1180 1180 1180 1180 1180 1650 1650 1650
荐用钢轨steel track recommended 43kg/m QU70 QU70
90×90
电源Power source 三相交流3-PhaseA.C.50Hz 380V

WHY US
Henan Mining Crane Co., Ltd. (hereinafter referred to as "Henan Mining") was established in 2002. The company has a registered capital of 1.177 billion yuan, a construction area of 1.62 million square meters, more than 4,500 employees, and more than 3,500 sets of advanced processing equipment. ). Specializing in the research and development, production, sales and service of more than 110 types of cranes and accessories in three series of "KUANGYUAN" brand bridge cranes, gantry cranes and electric hoists. As a professional crane and material handling product manufacturer and service provider, it can provide customers with overall solutions and full life cycle services, and is committed to the intelligent, green and high-quality development of the crane industry.
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet
The company is a national high-tech enterprise, with a technical team composed of more than 10 top industry experts and more than 200 middle and senior engineers, responsible for the innovative design and development of products. At present, it has obtained more than 300 national patents and provincial scientific and technological achievements. Provide strong support to promote the innovative development of the lifting industry.
It is the company's long-cherished wish to "build a century-old mineral resource and create a first-class enterprise". The company takes "filial piety culture" as the core value of the corporate culture, in accordance with the development goal of "three hearts and six best", wins the world with integrity, cooperates with friends from all walks of life, and is committed to leading the high-quality development of the crane industry.
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet

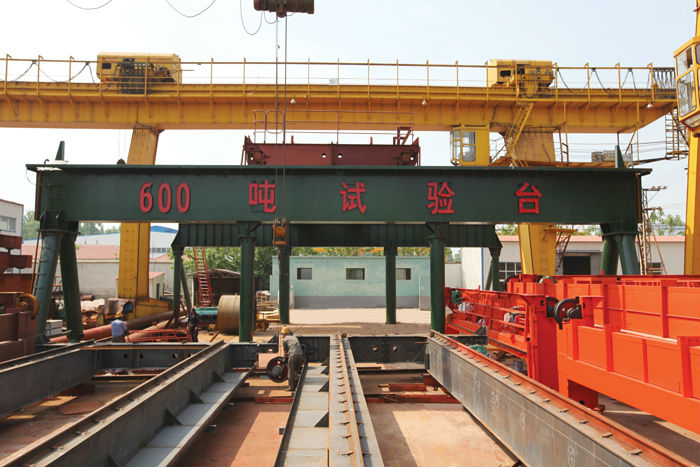

Pre-testing Equipment
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet
Logistics System
10T A6 Double Girder Overhead Bridge Crane 22m With Grab Magnet
FAQ&CONTACT US
1Q: How can you ensure the quality? A: Before delivery, every product with quality certification will be tested strictly by QC teams. You are also warmly welcomed to our factory to make the inspections. Meanwhile, also support live factory view & crane inspection. 2Q: What's your delivery period? A: Within 10/25/40 days after your prepayment received. Exact period should be based on detailed requirements and actual period. 3Q: What's your warranty period? A: 18 months for cranes accepted. 4Q: Do you have engineer oversea installation service? A: Yes, we could provide the crane supervision, installation, commissioning & training.
5Q: What kinds of products do you have? A: All kinds of industrial crane (especially non-standard); Overhead Crane; Gantry Crane, Jib Crane, Wire Rope Hoist; Electric Winch, etc. 6Q: Could we buy spare parts in local once they are out of work? A: Our main electrical parts brand is SIEMENS or Schneider or S E W brand; it's very easy to buy all the world. But if there is any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc. 7Q: Do you provide lift tools or crane parts? A: Yes, we can provide any kinds of related parts such as hoists, motor, wheels, hang beam, travel beams, enclosed bus bar, lift clamp, grab, magnet , pulley blocks, C hook, wire rope, drum, etc.
