Factory Price Slow Lifting Speed JM Modle 5Ton Wire Rope Electric Winch
General Description:
Electric winch is consisting of electric motor, drum, brake, steel wire rope, electrical control system and steel structure.
Electric winch is can be used alone or as a component of machinery such as lifting, road construction and mine hoisting or pull or lift heavy objects in road and bridge projects, civil construction, mining area, factory, port, marine, e.g,
Installation and disassembly of all kinds of large or super large size steel structure and machinery equipment, reinforce concrete, drag ships, the features are orderly wire rope, safe and reliable lifting, speed is usually more than 20m/min.
1. Winch Capacity: 0.5-20t
2. Lifting height: customized
3. Lifting speed: single speed or inverter control lifting speed
4. Voltage: 220v/380v/400v/415v, 440v, 50 Hz or 60 Hz 3phase.
5. Control Model: Push button or cam control or remote control
6. Main Electrical Parts Brand: Siemens or Schneider electrical system
7. Current overload protection function, voltage lower protection function.
Design standards
Round strand wire rope GB/T20118-2006
Crane design standard GB3811-2011
Construction winch testing standards and methods GB6947-1986
Technical parameter
| KuangYuan brand | Capacity | Rated speed (m/min) | Rope capacity (m) | Rope Diameter (mm) | Motor type | Motor power (KW) | Overall dimension (mm) | Weight(Kg) |
| JM ELECTRIC WINCH | JM0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
| JM1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
| JM1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
| JM2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 |
| JM3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
| JM3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
| JM5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
| JM5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
| JM8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 |
| JM10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |

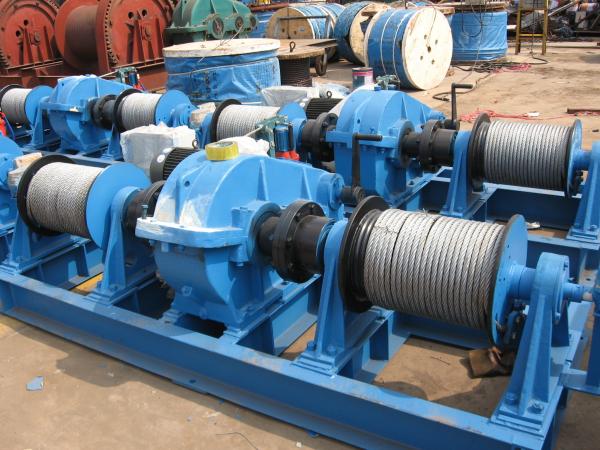

Detailed Images:
FAQ
A: Can you provide custom service?
B: Yes, of course. We are manufacturer and we have our own engineer group. They can work out customized design according to your requirement. The most important thing is that you should tell us what you need.
A: Are there any professional technicians to assist our installation?
B: Yes. We have a professional installation team, who has already been to many countries to assist the installation.If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.
A: Whether or not you can offer the matched spare parts?
B: Yes, as a Single girder 10 ton overhead crane sale manufacturer, we can offer all the related spare parts. Such as motor, hoists, drums, wheels,grabs, hooks, rails, travel beams, enclosed bus bar, etc.
A: How can you ensure the quality?
B: Before delivery, every product will be tested strictly and we will send you the quality certification. You are alsowarmly welcomed to our factory to make the inspections.
