125/32 Ton Heavy Duty Four Beams YZS Model Electric Overhead Traveling Casting Crane For Steel Mill
Simple Description Of 125/32 Ton Four Beams Overhead Casting Crane :
YZS Type 125／32t Four-beam Cast Bridge Crane is composed of boxed bridge frame, hook, crane travelling mechanism and electric system. Two carts for two lift, main lift cart is up, aux lift cart is below, to finish the heavy duty working, and could aux hook could be on left and right of main hook.The main hook employs a load tool as the lifting device to hoist steel ladle, the auxiliary hook cooperate with the main hook to accomplish pouring of molten steel and steel slag, and other auxiliary hoisting.Use various speed system with speed ratio as 1:10 for main mechanisms such as hoisting, trolley traversing and crane travelling. Also we can choose the suitable speed under the customer requirement. Applied in mechanical processing workshop,metallurgical factory and subsidiary workshop, warehouse, material yard, power plant for transferring, assembly, inspection maintenance and load unload procedures.
Product feature Of 125/32 Ton YZS Four Girders Overhead Casting Crane :
1,Very stable because of two lifting point on hanging beam of ladle hook through wirerope pulley.
2,Very safty to lift because every one hanging beam pulley have two pcs of wirerope to avoid the risk happened once one pc of wirerope damaged.
3,Anti high temperature.
4,Capacity is 125/32tons and up.
5,Two sets of brake for each lifting point and 4sets of brake for the main lift.
6, Emergency stop system,Zero position protection.
7, Over current Protection,Voltage loss protection.
8, Short-circuit Protection,High protection level IP54 IP55.
9, Phase sequence protection.
Main Products
Henan Mine Cranes meet the factory, workshop, port, mining, waste disposal, goods scattered, petrochemical, aerospace, military and other industries of universal bridge crane, overhead crane, eot crane, door crane, universal gantry crane, rubber tyre and rail mounted container gantry crane four link type portal crane, quayside container crane, crane, crane hook, mining grab crane, gantry crane, ship loader, grab bucket ship unloader, stacker reclaimer, dredger, mobile platforms and other types of hydraulic crane technical requirements.
Technical Parameter:
| S/N. | Crane No.s | 1 |
| 1 | Name | Four Beams Overhead Casting Crane |
| 2 | Model | YZS 125/32 Ton |
| 3 | Working class | A7 |
| 4 | Capacity | 125/30tons, |
| 5 | Span | 19m |
| 6 | Main lifting height | 24m |
| 7 | Auxiliary lifting height | 26m |
| 8 | Main hook lifting speed | 9.5m/min |
| 9 | Auxiliary hook lifting speed | 12m/min |
| 10 | trolley travelling speed | 42m/min |
| 11 | Crane travelling speed | 77m/min |
| 12 | Control type | Cab control |
| 13 | Power supply | 380V50Hz3Ph AC |
| 14 | Steel track recommended | QU120 |

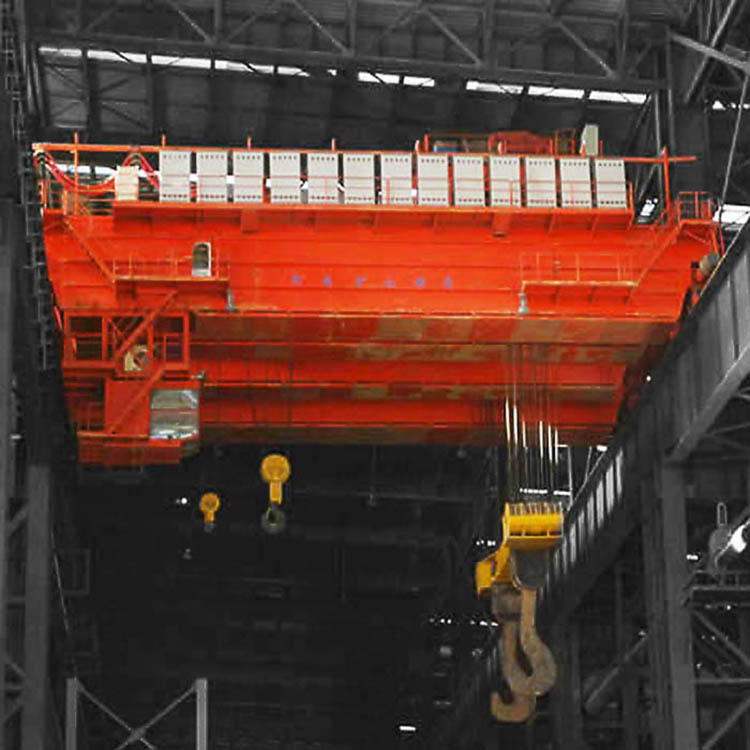

Real-pictures:
When you send us inquiry, plese try to give us the basic technical data as fellow:
| Lifting Capacity | _____T |
| Lifting Height | ______m |
| Electricity | __V__HZ__Phase |
| Span | _____m |
| Travelling Distance | _____m |
| Control Type | Pendant button, wireless remote control or driver's cab operation |
| Woeking class | If you don't know, pls tell us how often the crane lift max capcity witnin an hour |
Focus on lifting machinery for more than 20 years, welcome to contact us for more detailed information and we will serve you sincerely!
